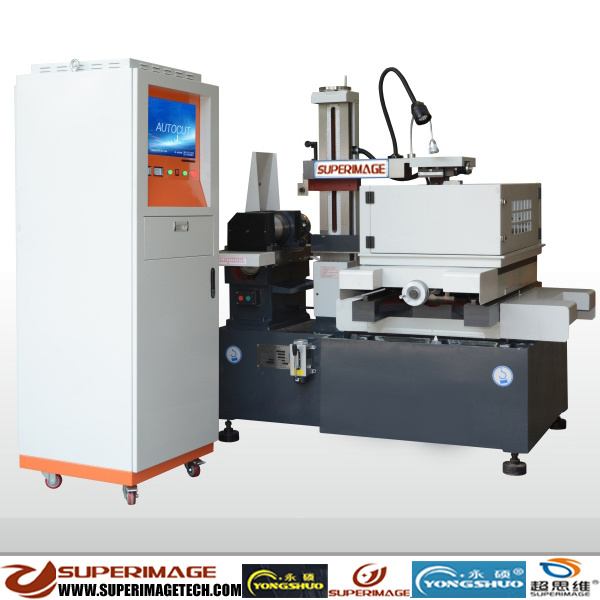

450mm*450mm High Speed CNC Wire Cut EDM Wedm-Ysdk7745

Quantity:


Inquire Add to Basket

Application:
Metal
Process Usage:
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools, CNC Wire-Cut
Movement Method:
Linear Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Model NO.:
WEDM-YSDK7745
Performance Classification:
Economical CNC Machine Tools
Certification:
GS, CE, RoHS, ISO 9001, SGS
Condition:
New
Transport Package:
Wood Case
Specification:
WEDM-YSDK7745: 450*450MM
Trademark:
SuperImage
Origin:
China
HS Code:
84619090
Production Capacity:
1000sets/Month
Samples:
US$ 13000/Set 1 Set(Min.Order) | Request Sample

Product Description

1. Products Name:

450mm*450mm CNC Wire Electrical Discharge Machine
CNC Wire-Cut Machine EDM
High Speed CNC Wire Cut EDM
High Speed CNC EDM Wire Cut Machine
CNC WIRE CUT EDM
4-Axis CNC WEDM
4 AXIS CNC EDM WIRE CUT
450mm*450mm CNC WEDM
WORK TABLE 500*750MM CNC WEDM
WIRE-CUT EDM WITH WORK TABLE 500*750MM
450mm*450mm ADVANCED MIDDLE-SPEED CNC WIRE CUTTING MACHINE

2. Basic Technical Data:

TECHNICAL DATA	WEDM-YSDK7745
CONTROL SYSTEM & AXIS QTY.	AUTOCUT, 4 AXIS
XY AXIS TRAVELING DISTANCE	450*450MM
WORKTABLE SIZE	500*750MM
MAX.LOADING WEIGHT OF WORKTABLE	500KG
MOTOR DRIVING MODE	STEPPING MOTOR DRIVE
MACHINING SURFACE ROUGHNESS	Ra≤2.5UM
MACHINING PRECISION	0.01UM
MAX. CUTTING THICKNESS	500MM
MAX.CUTTING SLOPE/WORKPIECE THICKNESS	+30/100
MAX.CUTTING SPEED	≥12000MM2/HOUR
STABLE MACHINING SPEED	10000MM2/HOUR(2-3 TIMES THAN THAT OF ORDINARY)
SCREWS RUNNING SPEED	12MM
DIAMETER OF ELECTRODE WIRE	Φ0.1-0.25MM
MACHINE RUNNGING POWER	1.5KW
MAX.MACHINING CURRENT	8A
MACHINE SIZE	1650MM1300MM1550MM
MACHINE WEIGHT	1800KG
HARDWARE CONFIGURATION & INTERFACE	SCHNEIDER ELECTRIC,USB,LAN/RS232
OPERATION PANEL & LANGUAGE	ENGLISH,JAPAN,RUSSIA,ETC
