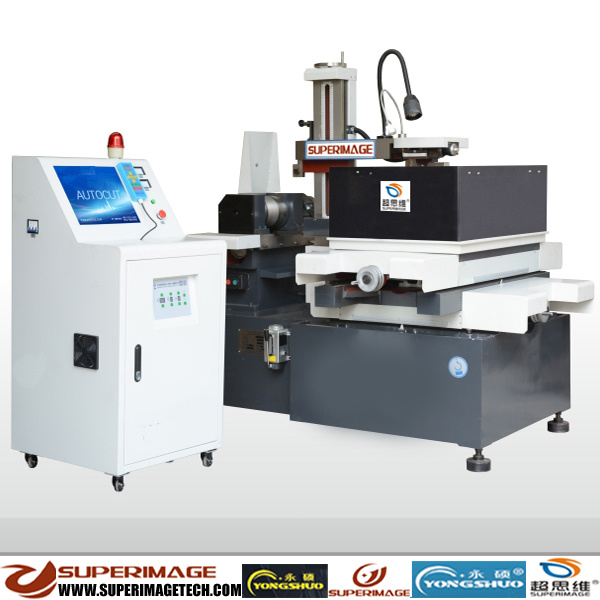

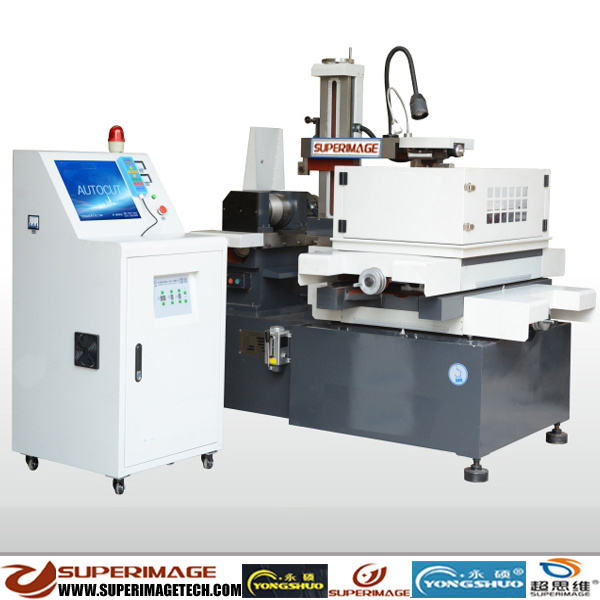

1200mm*1500mm Middle-Speed CNC Wire-Cut EDM Machine Wedm-Ysdk77120m

Quantity:



Inquire Add to Basket

Application:
Metal
Process Usage:
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools, CNC Wire-Cut
Movement Method:
Linear Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Model NO.:
WEDM-YSDK77120M
Performance Classification:
Economical CNC Machine Tools
Certification:
GS, CE, RoHS, ISO 9001, SGS
Condition:
New
Transport Package:
Wood Case
Specification:
WEDM-YSDK77120M: 1200*1500MM
Trademark:
SuperImage
Origin:
China
HS Code:
84619090
Production Capacity:
1000sets/Month
Samples:
US$ 19000/Set 1 Set(Min.Order) | Request Sample

Product Description

1. Products Name:

1200mm*1500mm Middle-Speed CNC Wire Electrical Discharge Machine
CNC Wire-Cut Machine EDM
Middle-Speed CNC Wire Cut EDM
Middle-Speed CNC EDM Wire Cut Machine
Cost-saved Middle-Speed CNC Wirecut EDM
CNC WIRE CUT EDM
4-Axis CNC WEDM
4 AXIS CNC EDM WIRE CUT
1200mm*1500mm CNC WEDM
WORK TABLE 1400*1900MM CNC WEDM
WIRE-CUT EDM WITH WORK TABLE 1400*1900MM
1200mm*1500mm ADVANCED MIDDLE-SPEED CNC WIRE CUTTING MACHINE

2. Basic Technical Data:

TECHNICAL DATA	WEDM-YSDK77120M
CONTROL SYSTEM & AXIS QTY.	AUTOCUT, 4 AXIS
XY AXIS TRAVELING DISTANCE	1200*1500MM
WORKTABLE SIZE	1400*1900MM
MAX.LOADING WEIGHT OF WORKTABLE	3500KG
MOTOR DRIVING MODE	STEPPING MOTOR DRIVE
MACHINING SURFACE ROUGHNESS	Ra≤1.0UM
MAX.CUTTING THICKNESS	1000MM
MAX.CUTTING SLOPE/WORKPIECE THICKNESS	+60/100
MAX.CUTTING SPEED	≥10000MM2/HOUR
MULTI-CUTTER MACHINING PRECISION	≤0.015MM
THREE-CUTTER AVERAGE MACHINING SPEED	≥5000MM2/HOUR
SCREWS RUNNING SPEED	FREQUENCY CONTROL ADJUSTABLE
DIAMETER OF ELECTRODE WIRE	Φ0.1-0.25MM
MACHINE RUNNGING POWER	1.5KW
MAX.MACHINING CURRENT	8A
MACHINE SIZE	4000MM4200MM2700MM
MACHINE WEIGHT	6000KG
HARDWARE CONFIGURATION & INTERFACE	SCHNEIDER ELECTRIC,USB,LAN/RS232
OPERATION PANEL & LANGUAGE	ENGLISH,JAPAN,RUSSIA,ETC
