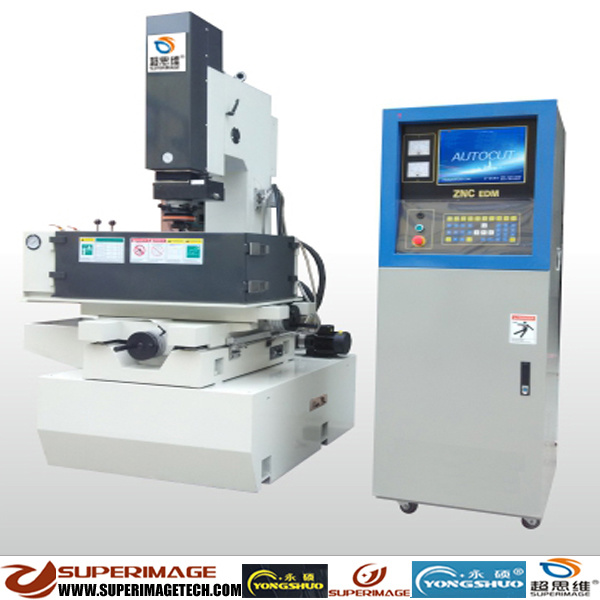

1400700500mm CNC Die Sinking EDM CNC EDM Sinker CNC Molding EDM Machine

Quantity:



Inquire Add to Basket

Application:
Metal
Process Usage:
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools, CNC Wire-Cut
Movement Method:
Linear Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Model NO.:
EDM-YS540
Performance Classification:
Economical CNC Machine Tools
Certification:
GS, CE, RoHS, ISO 9001, SGS
Condition:
New
Transport Package:
Wood Case
Specification:
EDM-YS540: 1400*700*500mm
Trademark:
SuperImage
Origin:
China
HS Code:
84619090
Production Capacity:
1000sets/Month
Samples:
US$ 20000/Set 1 Set(Min.Order) | Request Sample

Product Description

1. Products Name:

1400mm*700mm*500mm CNC Die Sinking EDM Machine
CNC Die-Sinking EDM
High Speed CNC Die-Sinker EDM
High Speed CNC Die Sink EDM
CNC Electric Sinking EDM
CNC Electric Spark Die Sinking EDM
1400*700*500mm CNC EDM Die Sinking Machine
WORK TABLE 800*500MM CNC DIE-SINKING EDM
Electric Spark Erosion EDM with Work Table 800*500MM
1400*700*500mm High-Speed CNC Sinker EDM
CNC Molding EDM
Automatic CNC Mold/Dies Forming EDM Machine

2. Basic Technical Data:

TECHNICAL DATA	EDM-YS540
CONTROL SYSTEM & AXIS QTY.	AUTOCUT, 4-AXIS
WORKING GROOVE INNER SIZE(LWD)	1400700500MM
WORKTABLE SIZE	800*500MM
X-Y AXIS TRAVELING DISTANCE	500/400MM
SPINDLE(Z-AXIS) STROKE	200-250MM
SPINDLE(Z-AXIS) ASSISTING STROKE(2ND STROKE)	300MM
THE DISTANCE FROM ELECTRODE END TO WORKTABLE	680MM
MAX.LOADING WEIGHT OF WORKTABLE	1300KG
MAX.ELECTRODE WEIGHT	150KG
MAX.WORKING CURRENT	50A
MAX.MACHINING SPEED	200MM2/HOUR
SURFACE ROUGHNESS	≤0.4UM
LOWEST ELECTRICAL CONSUMPTION RATE	≤0.2%
MAX. OIL LEVEL	380MM
FILTERING TANK CAPACITY	540LITERS
MACHINE SIZE	2100MM1620MM2600MM
MACHINE WEIGHT	2200KG
